SIMPLY BRILLIANT

RANGE EXTENDER

The new FUENF-E range extender by Lang.
For all commercial vehicles.
Turns waste heat into extra miles.

5% more miles
5 % cost reduction
5 % CO2 reduction
5 % more efficency
5 % more performance

STATE OF THE ART – GERMAN ENGINEERING FOR A LOWER CARBON FOOTPRINT

CUSTOMER BENEFITS:

  • plug and play system
  • only heavy duty field proofed
    validated components
  • easy and quick application
  • direct cost reduction
  • tailormade solutions,
    inhouse engineering

Diagrams

Log(p)-h
FUENF-E diagram Log(p)-h
T-s
FUENF-E diagram T-s
p-T
FUENF-E diagram p-T
p-v
FUENF-E diagram p-v

FOR ALL BUS / COACH DRIVE SYSTEMS

FUENF-E Compatibility

TECHNICAL DATA

Heat source
Heat transfer fluid: water
Temperature range: 60-95°C
Volumetric flow rate: 2-5 m3/h
Heat sink
Heat transfer medium: water/ air
Temperature range: 5-25 °C
Volumetric flow rate: 2-5 m3/h (water)
Poweroutput
Gross power 1-4 kW
Voltage: AC 50/60 Hz 100-400 V
DC 100-800 V

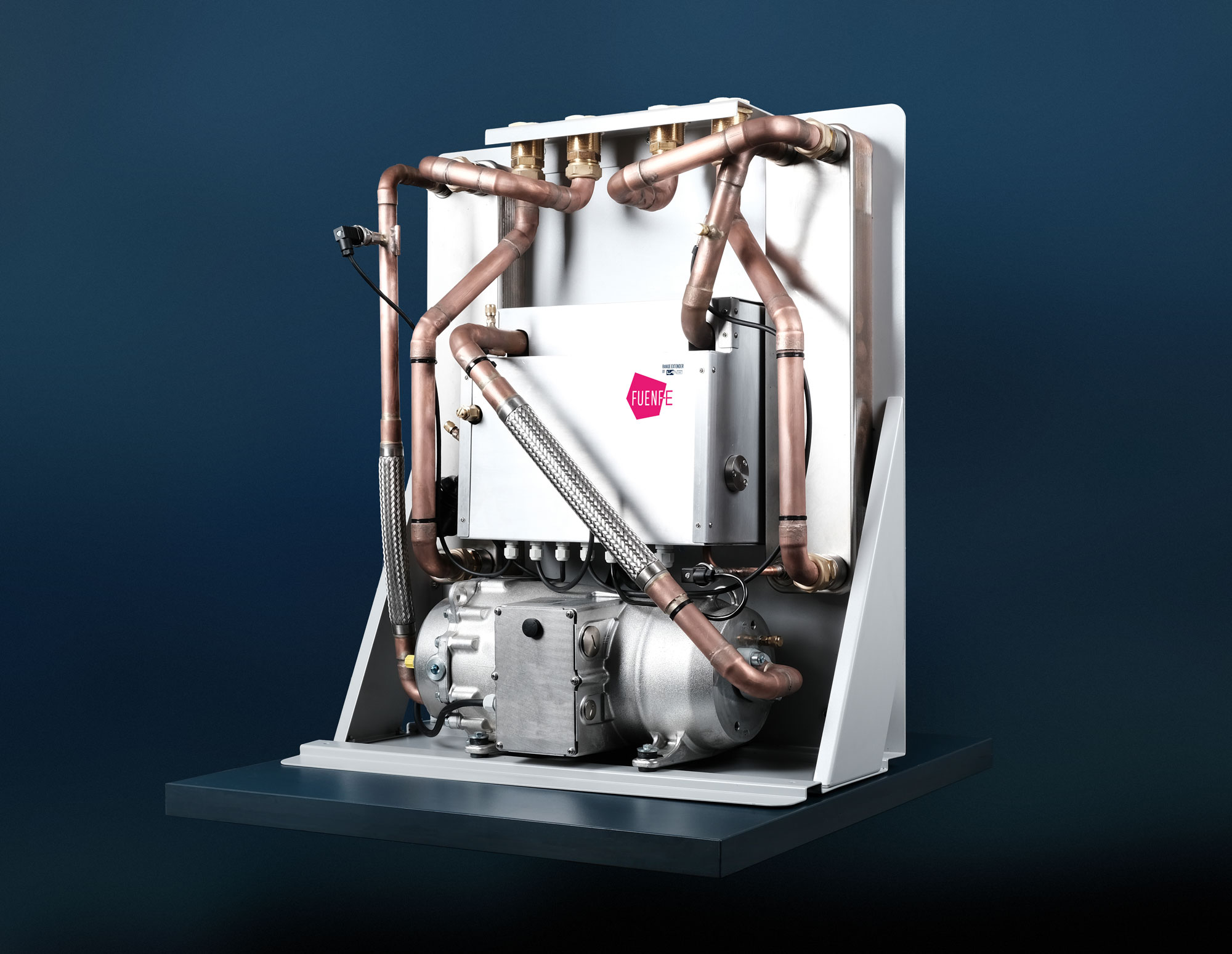

ORC
natural working fluid, EN3789 conformity
TGWP=4
Dimension: 800x600x300 mm
Weight: 60 kg

Performance Map

FUENF-E Performance Map
